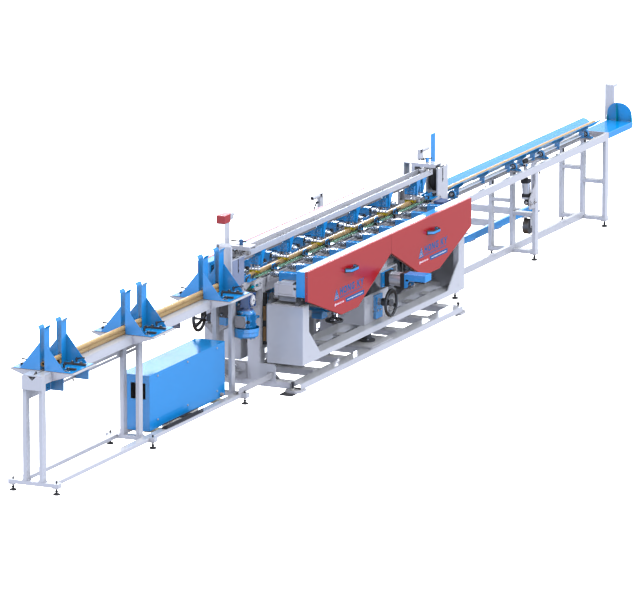

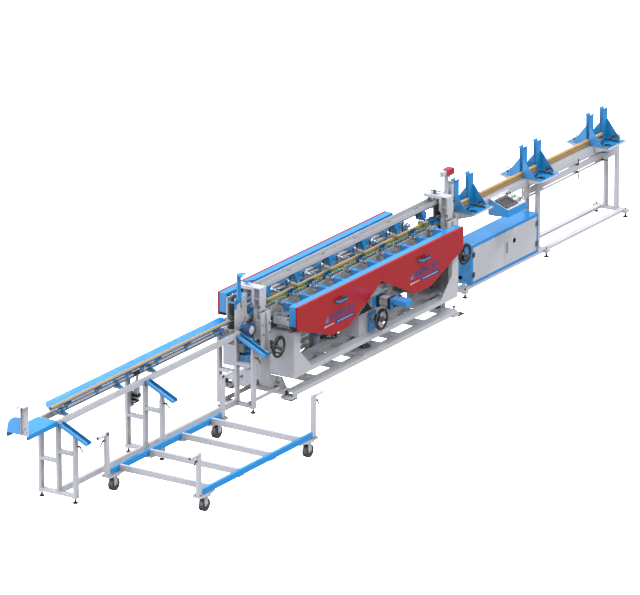

Automatic 3m Horizontal Drilling Machine Hong Ky Technical specifications: The 3-meter automatic horizontal drilling machine is developed by European experts along with the engineering team of Hong Ky.
The machine is used for drilling bamboo, wood drilling, helping to drill round holes on wood, creating precise and uniform holes on a bamboo stick, wood with a maximum of 12 drill bits.
With the closest distance between 2 shaft bearings is 200 - 300mm, drill bit diameter Ø 10 - Ø12 mm.

Key features:

Workability in industrial production environments: The automatic horizontal drilling machine is designed to operate in industrial production environments.
This ensures professionalism and high accuracy during the drilling process.
Cost and labor savings: The automatic horizontal drilling machine has the ability to work continuously thanks to the automatic feeding system without encountering problems.
This helps save costs and optimize labor usage. Automatic control and sensors: The machine is controlled by an automatic control system, allowing users to easily adjust hole sizes and drill with an English and Vietnamese touchscreen control panel for precise operation.

Product application: The machine is used for processing indoor/outdoor furniture made of bamboo to serve projects such as tent camping, homestays, etc.
The 3-meter automatic horizontal drilling machine can also drill other types of wood besides bamboo sticks such as: industrial wood and natural wood, maximizing output during the production process.

Benefits of the 3m automatic horizontal drilling machine: Precise machining: The automatic horizontal drilling machine provides precise machining capabilities, ensuring finished products meet high-quality standards.
The machine can drill from 1-12 bits with high precision.

The wood drill bits are installed on the smooth table surface with high precision and move on the groove carrying the shell, ensuring the final product always achieves the highest quality.
Automating the drilling process helps reduce dependence on manual labor. Continuous and efficient operation helps save production costs.
The wood drilling machine is an important device in the woodworking industry.

With its accurate and uniform drilling capabilities, the Hong Ky 3m automatic horizontal drilling machine helps optimize the production process and save time compared to manual drilling machines.
If the workshop is in need of an industrial wood drilling machine or bamboo drilling machine, then the Hong Ky 3m automatic horizontal drilling machine is the perfect choice.
Please contact us at 1900636536 for professional advice before purchasing the product.

Specifications:

Main spindle motor

4 x (3Hp-3phases-4P)

Main spindle speed

3600 rpm

Conveyor motor

1.5Hp-3phases-4P

Conveyor speed

60 - 70 m/min

Coiling shaft motor

2 x (0.37kw-3phases)

Feed-in, feed-out speed

70 – 100 m/min

Closest distance between 2 shaft bearings

2800 mm

Closest distance between 2 shaft bearings

200 - 300 mm

Drill bit diameter

Ø 10 - Ø12 mm

Drilling stroke

30 mm

Specialized for drilling bamboo or round wood (W x L)

#25 - #60 x 3000mm

Maximum working wood thickness

60 mm

Maximum working wood length

Lmax = 3000 mm

Maximum working wood width

Wmax = 60 mm

Table up-down travel

50 mm

Air cylinder working pressure

5.5 - 6 kgf/cm2

Machine dimensions (LxWxH)

11000 x 2500 x 1250 mm

Machine weight


 Not yet realistic

Power supply voltage

380V  ± 5%, 50HZ
