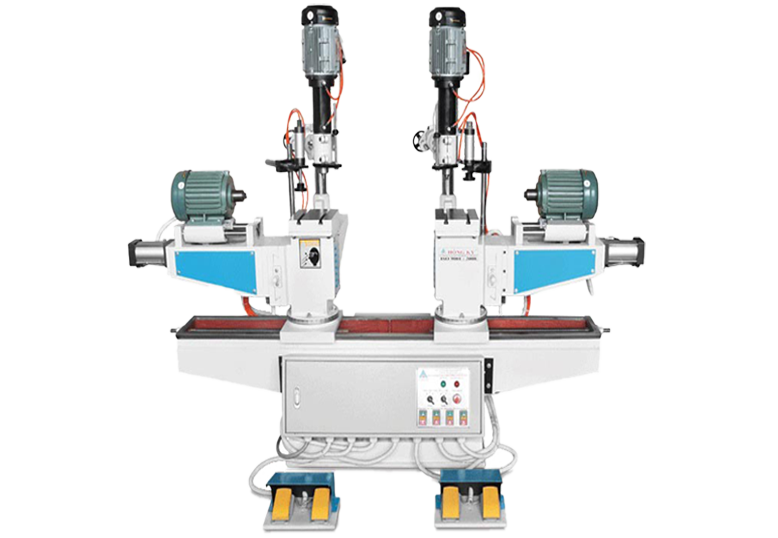

Drill machine

Drill machine with 2 vertical drill bits and 2 horizontal drill bits+84 28 73036536Free ordering and advice

product detail

Features:

Chuck of multiple bits not included

PRODUCT PARAMETER

TECHNICAL SPECIFICATIONS	Unit	HK - MD2H2V
Displacement of the vertical and horizontal	mm	80
Rotating speed of drill spindle	Rpm	2800
Motor of the horizontal drill	Hp	2 x (3Hp - 3phases - 2P)
Motor of the vertical drill	Hp	2 x (2Hp - 3phases - 2P)
Rotation angle of the drill bit		360
Cylinder for clamping the workpiece	Unit	2
Length of the workpiece	mm	300 - 1800
Maximum diameter of bit	mm	Ø13
Machine dimensions (L x W x H)	mm	3900 x 1050 x 2100
Machine net weight	kg	800
