product detail
Features:

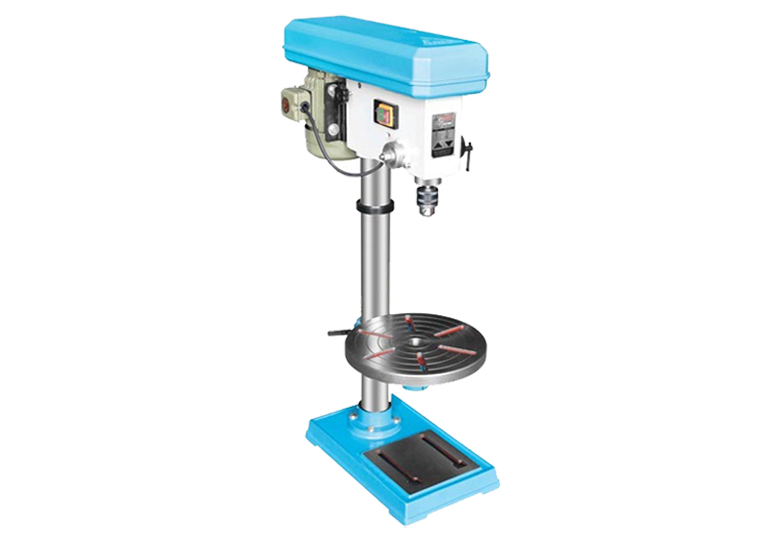

Single bit vertical drill
PRODUCT PARAMETER
| TECHNICAL SPECIFICATIONS | Unit | HK-DS01 |
Motor | Hp | 1Hp - 3phases -2P |
Rotating speed of drill spindle | Rpm | 970 - 1400 - 2200 - 3100 |
Displacement of spindle | mm | 80 |
Distance from the drill bit to the table | mm | 420 |
Capacity to clamp the drill bit | mm | Ø3 - Ø16 |
Machine dimensions (L x W x H) | mm | 705 x 370 x 1145 |
Machine net weight | kg | 80 |
product relative
