Sanding belt brush machine BBTS-4U

Sanding belt brush machine BBTS-4U+84 28 73036536Free ordering and advice

product detail

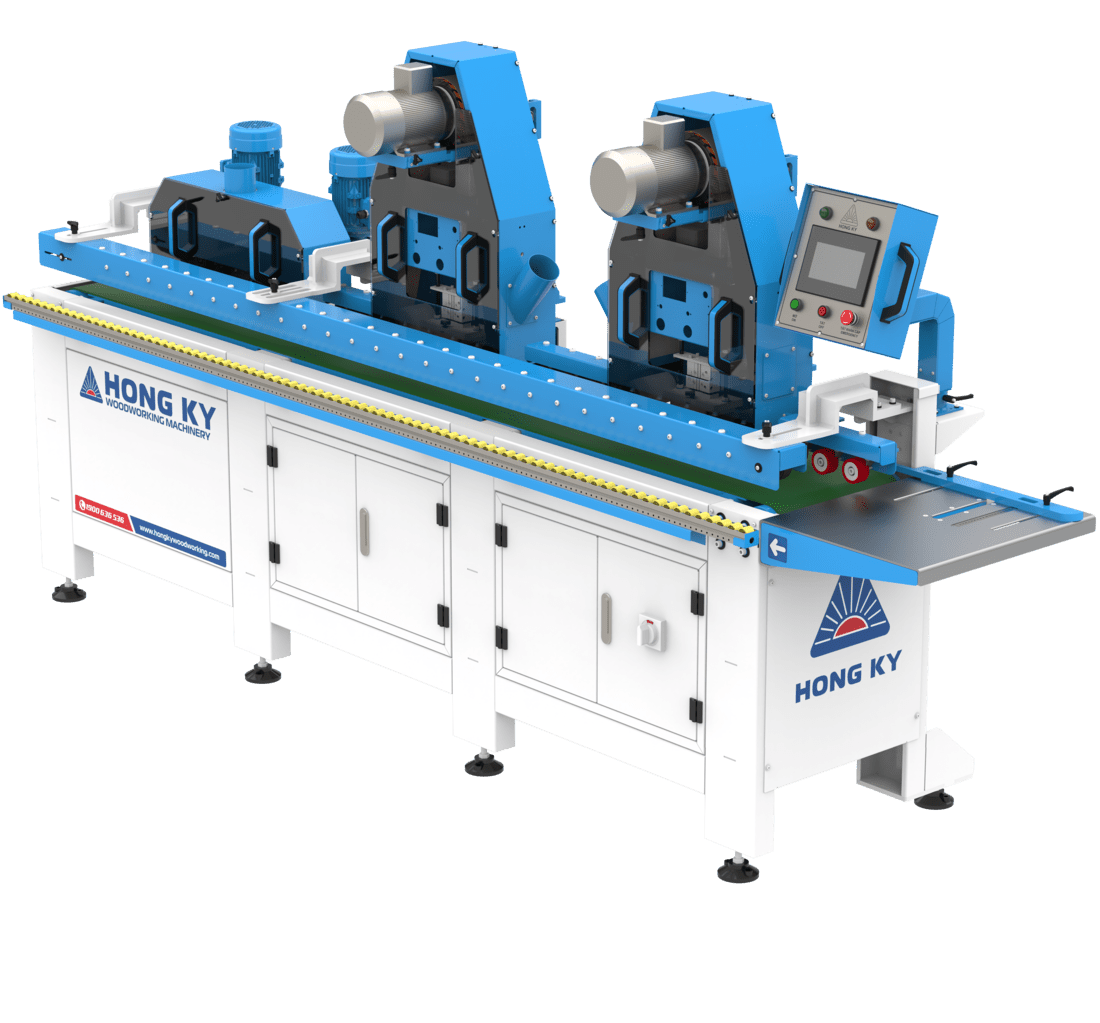

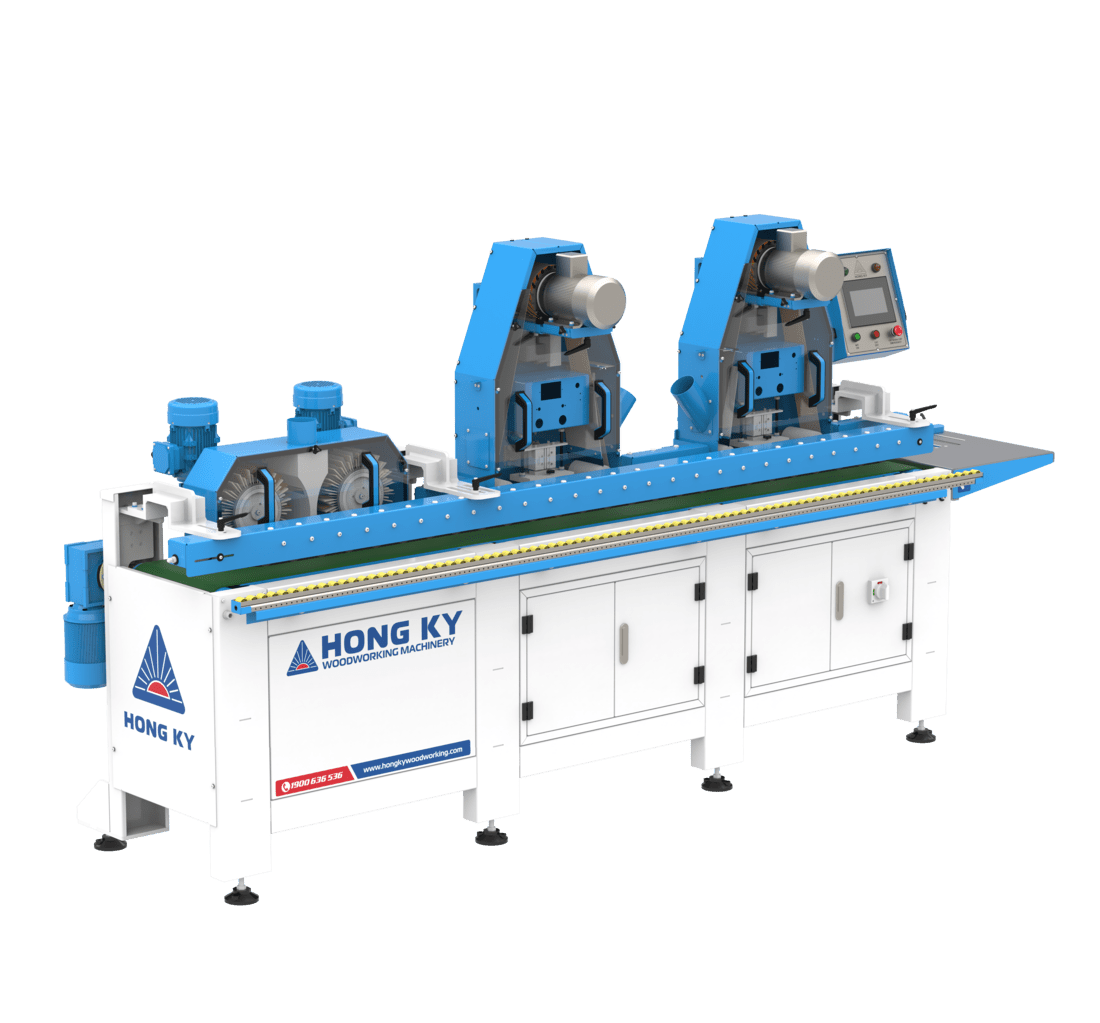

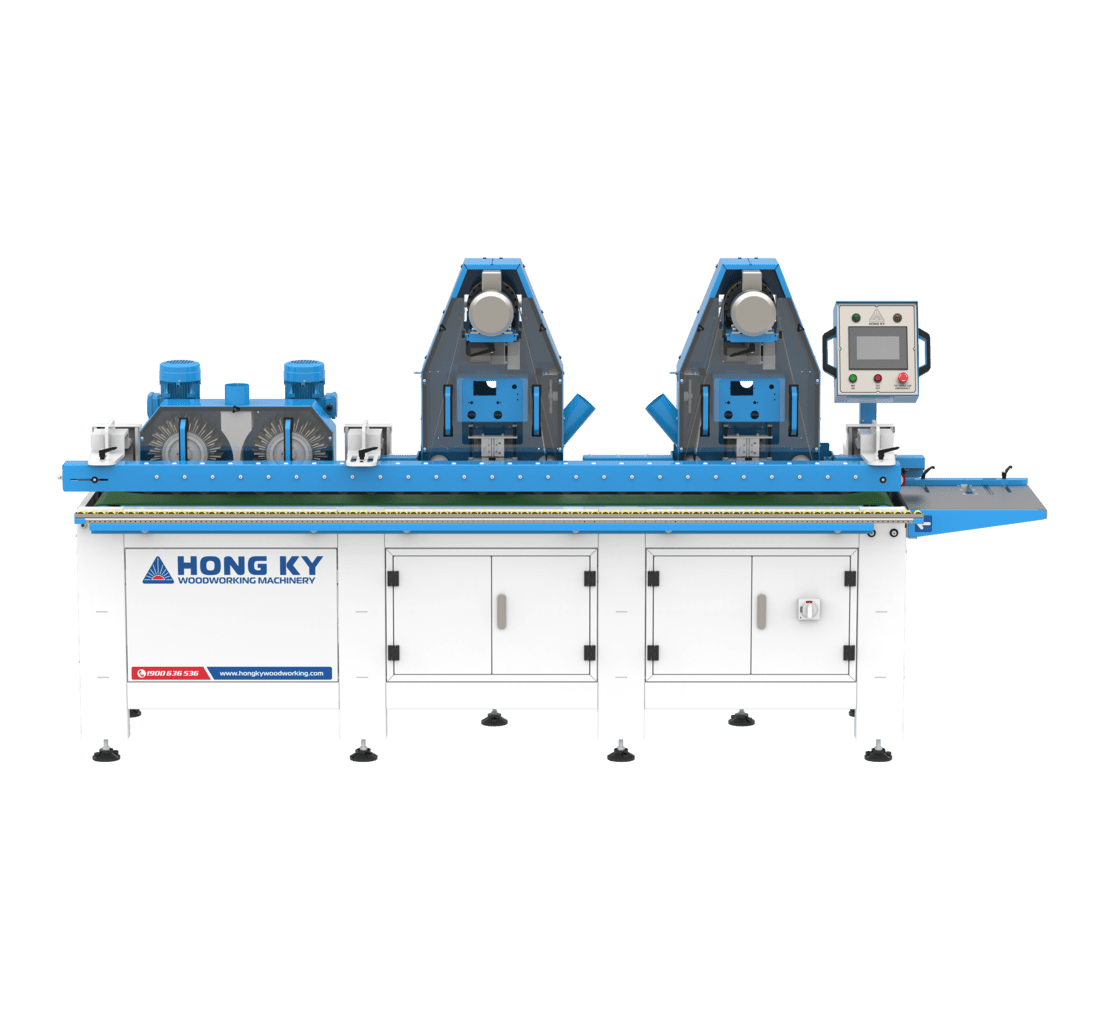

The BBTS-4U brush sanding machine is specifically designed for sanding primer or base paint on the surface of door frames with complex shapes.

The machine consists of a belt sanding unit and a brush sanding unit.

The belt sanding unit is responsible for straightening and smoothing the wood surface, creating a smooth surface to facilitate the painting process.

The brush sanding unit, with two counter-rotating shafts, handles areas that the belt sanding unit may have missed, ensuring an even and glossy surface on the wood.

The product is researched and designed by the Hong Ky engineering team according to European standards, possessing many outstanding features and bringing many benefits to businesses:

Simple structure, easy to use, easy to disassemble and assemble brushes and sandpaper.
Customize the conveyor belt speed, brush sanding speed, and belt sanding speed using a frequency converter via an HDMI touchscreen with 2 languages, Vietnamese and English.
Cost savings in labor, maintenance, repair, and increased work efficiency.

With the BBTS-4U sanding machine, sanding for primer or base paint will become easier and faster than ever before.

Contact Hong Ky now at hotline (+84) 28 73036536 for detailed advice and quotation.

Technical specifications:

Type of wood: Sealer / Basecoat sanding
Specification	Value
Operating voltage	3 phase-380V ± 5%/50Hz
Working thickness:	10-30 mm
Minimum working length:	240 mm
Maximum working width	100 mm
Conveyor speed	5-25 m/phút / m/ minute
Working table height:	880-990 mm
Length of conveyor:	2800 mm
Sanding brush speed:	140-420 rpm
Sanding belt speed:	400-1200 m/ minute
Sanding belt specifications (HxP):	100x2060 mm
Dust extraction hood:	3 x Ø90 mm
Air speed:	28 m/s
Air volume/Dust extraction:	1924 m³/ h
Machine size (LxWxH):	3550x1100x1800 mm
Weight of machine:	990 kg
Total power:	4.9 kW
