product detail

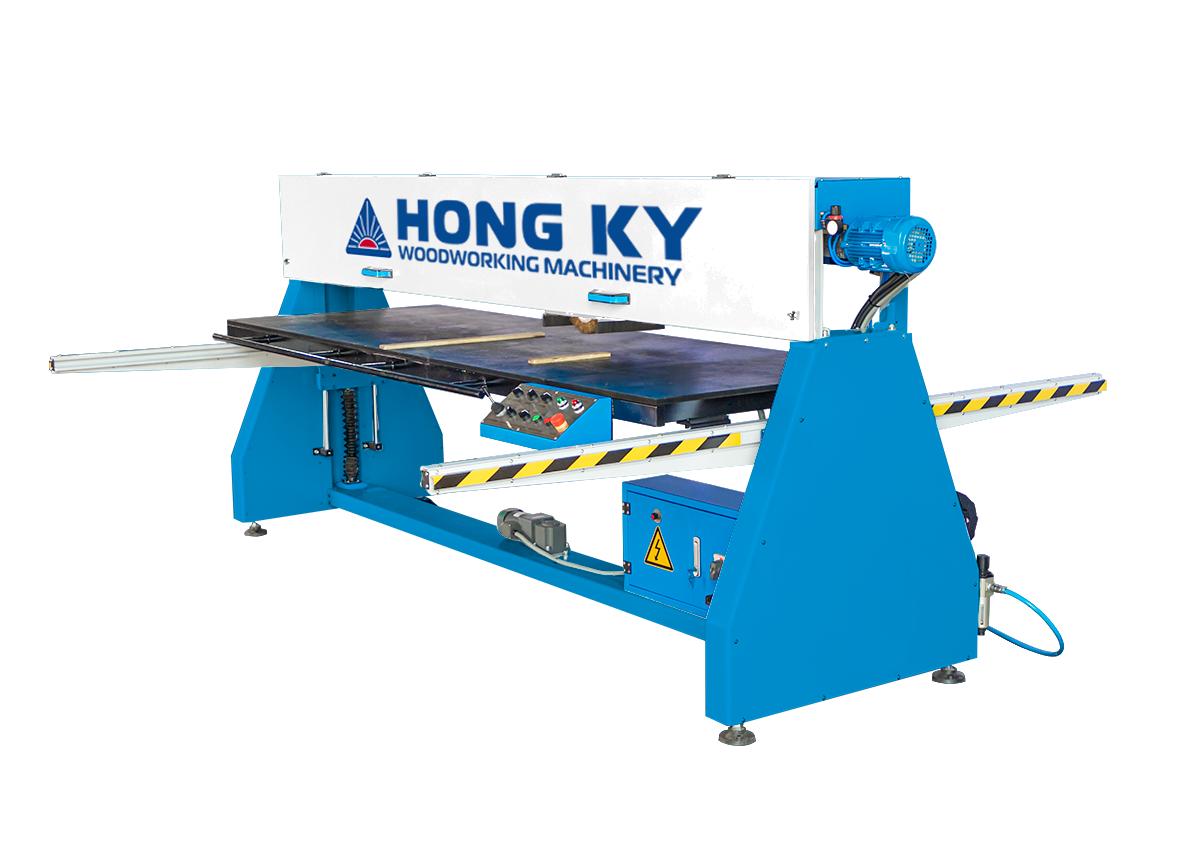

FEATURES:
1. This machine is used to create wood shavings for convex and oversized surfaces
2. Convex and concave surfaces with R> 200
3. Special design to distress wood with wire brush and fibers brush
4. Can distress /clean big size board
5. Can distress /clean irregular thickness on board
6. Avoid to damage edges
7. Best distress/ cleaning effect with forwards and revers rotation on brush
8. Easy and safe to operate
PRODUCT PARAMETER:
Timber species: Softwood / Hardwood |
| ||
Specification | Value | ||
Operating voltage: | 3 phase-380V ± 5%/50Hz | ||
Working size (LxWxH): | 2600x1000x300 mm (Option 2600x2000x300) | ||
Width Wire and Fiber brush: | About 210 mm | ||
Type sander wire brush: | Filament 0.35mm (Option Filament 0.3mm,0.4mm.0.5mm…) | ||
Type sander wire brush: | K180 (Option K120,K320…) | ||
Fiber Sanding unit - Wheel Ø 200 /210 mm: | 1450 rpm | ||
Fiber sander motor: | 1.1kW | ||
Shaft diameter: | 2 inch (50.8mm) | ||
Fiber move speed : | 20.7m/min, 50 Hz | ||
Fiber move speed motor: | 0.37kW | ||
Fiber move speed motor: | 200W | ||
Dust extraction hood: | Ø60 mm | ||
Air volume / Dust extraction: | 1008 m3/h | ||
Size of machine LxWxH: | 3570x2010x1600 mm (Option 3570x4070x1600 mm) | ||
Machine net weight: | 630kg (Option 720kg) | ||
Total power: | 1.67 kW | ||
