Disc drum brush sanding machine 1300DNN+84 28 73036536Free ordering and advice
product detail
Component name: disc / drum brush sanding machine 1300DNN
Advantages:
- Sanding disc/ drum with right oscillation (Side movements) reduce sanding lines.
- With special design conveyor belt can sanding 5 mm wood with sanding in conveyor belt.
- Pull out system make change of sand strips /support brush easily and quickly.
Disc drum brush sanding machine 1300DNN can solve many sanding problems = remove slmanual sanding jobs with fast machine sanding.
Better sanding faster = better even quality with a lover production price.
Disc drum brush sanding machine 1300DNN well solves the core problems of increasing productivity and quality, while reducing human resources significantly. Specifically:
1. Clean wood hair, reduce sharp edges

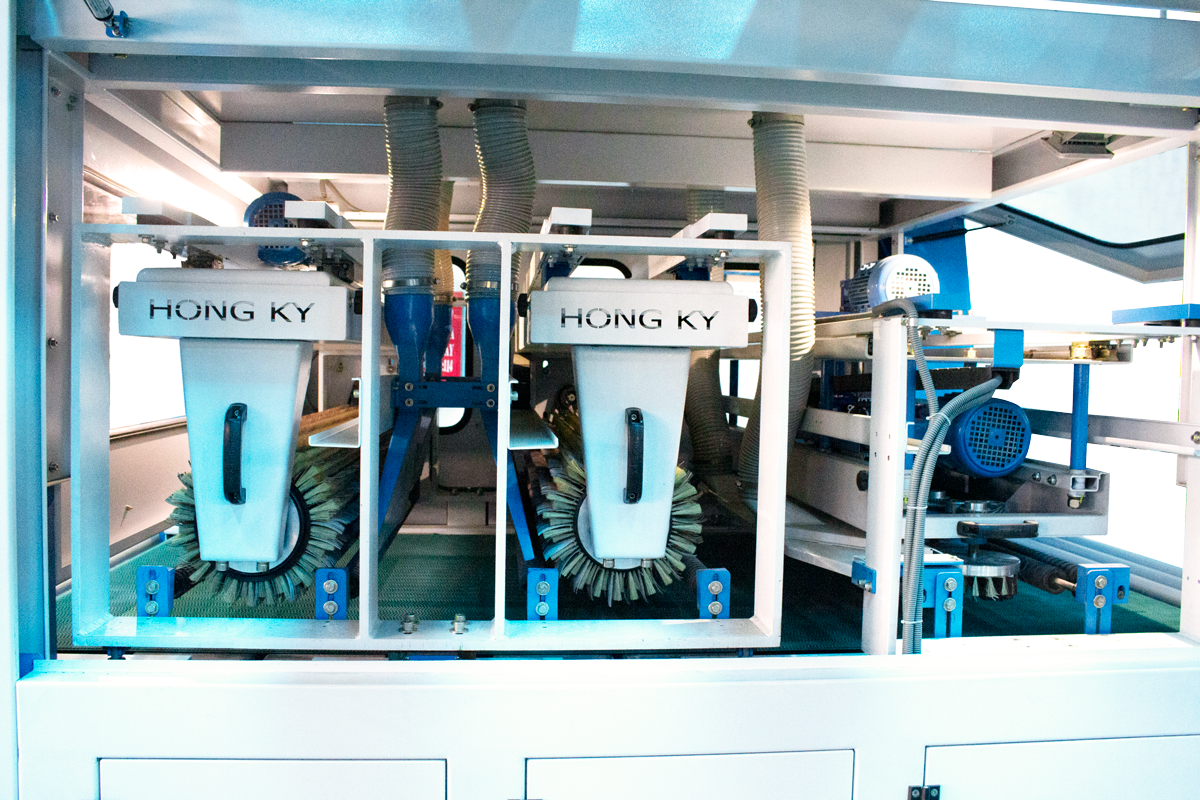

The machine is composed of 2 counter-rotating straight spindles and 1 disc spindles, all with non-stop shaking oscillations:

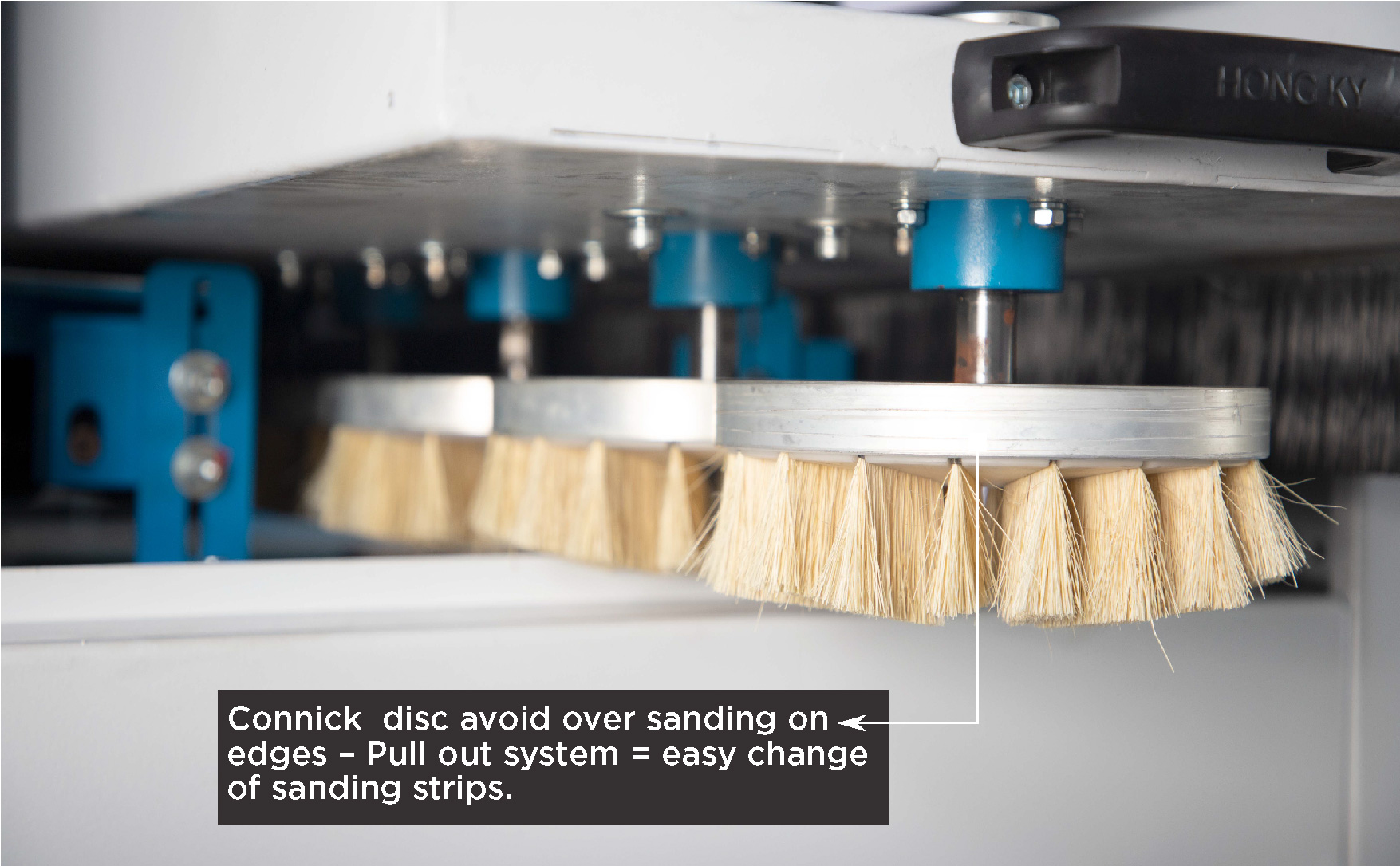

- When the wood workpiece is put into contact with the disc spindles, the edge is immediately reduced by the continuous rotating brush sanding disc, and at the same time loosening the wood hairs on the surface to increase the sanding efficiency.

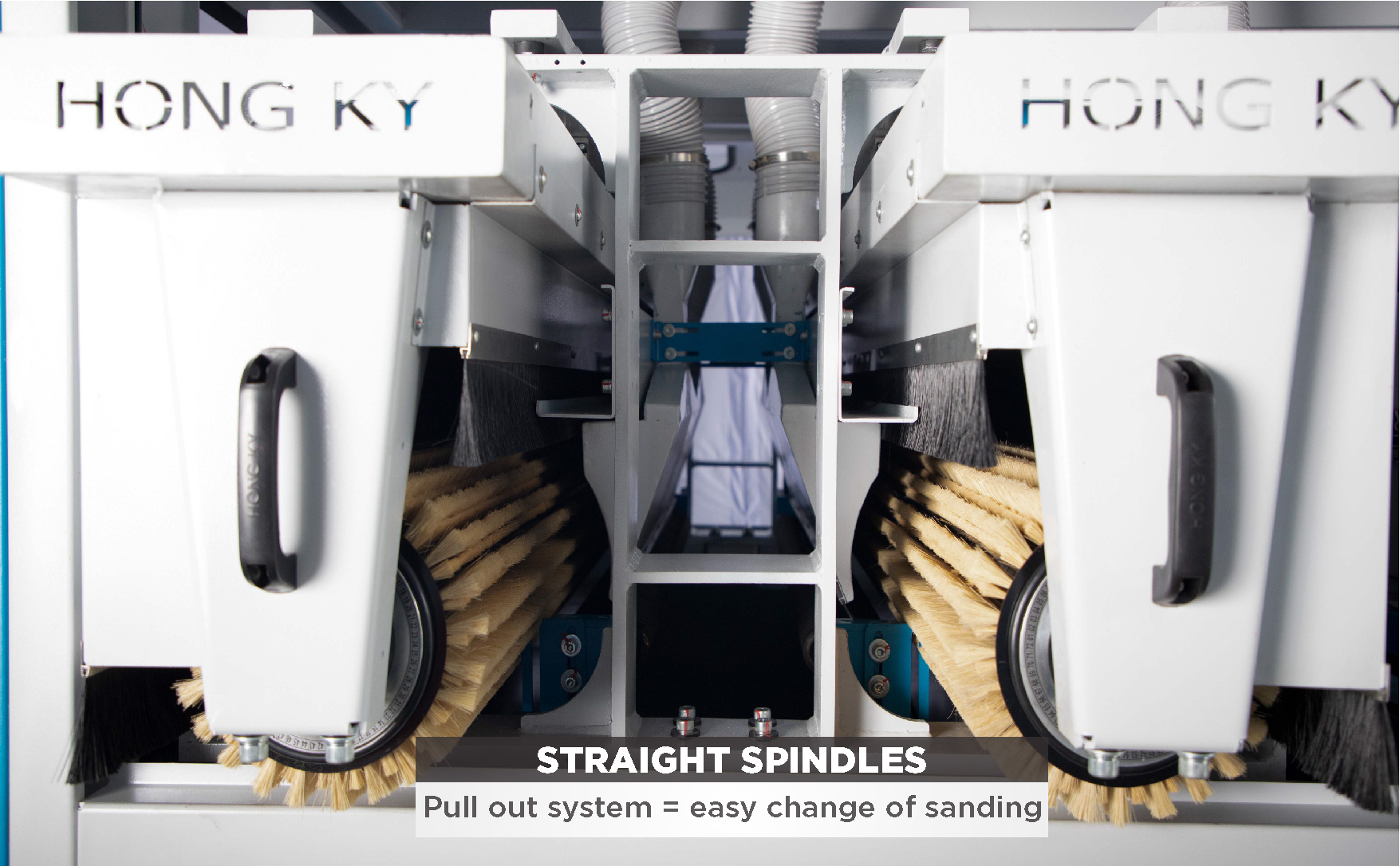

- When it comes to 2 straight axes, thanks to the opposite motion and oscillation between the 2 spindles alternating, combined with the wood hair that has been plowed before, it is easy to be removed cleanly.
In addition, the 3 axes have an independent shaking system to help create an effective sanding effect.
2. Multi functions:
Disc drum brush sanding machine 1300DNN is good for wood sanding before sealer /base coat.
In some cases, it can use for sealer sanding with a high finishing.
Our sanding specialist team help to design with the right btush /sanding strips to get best sanding effect. User friendly PLC touch screen make easy to set right program to best sanding effect
3. Easy to use, save labor
User friendly PLC touch screen make easy to set right program to best sanding effect.
The good sanding effect can easily replace 4-6 workers sanding manuel with orbital sanders.
We recommend using in line with wide belt sanders.
Insert drawing wide belt sander /brush sander.
Contact Hong Ky now at hotline (+84) 28 73036536 for detailed advice and quotation.
Video Success Story:
DISC DRUM BRUSH SANDING MACHINE 1300DNN - STARTING THE SUCCESSFUL STORY OF WOODEN ENTERPRISE
SPECIFICATIONS OF MACHINE:
| ECHNICAL SPECIFICATIONS | Value | Model: HK-DNN130-L (SC) |
| Code: 2190027 | ||
| Timber species: Softwood / Hardwood: | ||
| Operating voltage | - | 3 phase-380V ± 5%/50Hz |
| Working thickness | mm | 5-100 |
| Minimum working length | mm | 350 |
| Maximum working width | mm | 1300 |
| Lifting motor - High adjustment | mm | 5-120 |
| Conveyor speed | m/min | 2-10 |
| Working height | mm | 850-900 |
| Disc unit - Disc Ø180mm | rpm | 200-560 |
| Cross movement D | m/min | 4-10 |
| Sanding unit - Wheel Ø 180 /1350 mm | rpm | 150-500 |
| Cross movement N: | m/min | 1-3 |
| Dust extraction hood: | mm | 6 x Ø100 |
| Air volume/Dust extraction: | m³/ h | 5090 |
| Machine demensions (LxWxH): | mm | 3163x2380x2005 |
| Weight of machine: | kg | 2200 |
| Total power: | KW | 7.93 |
Video:
