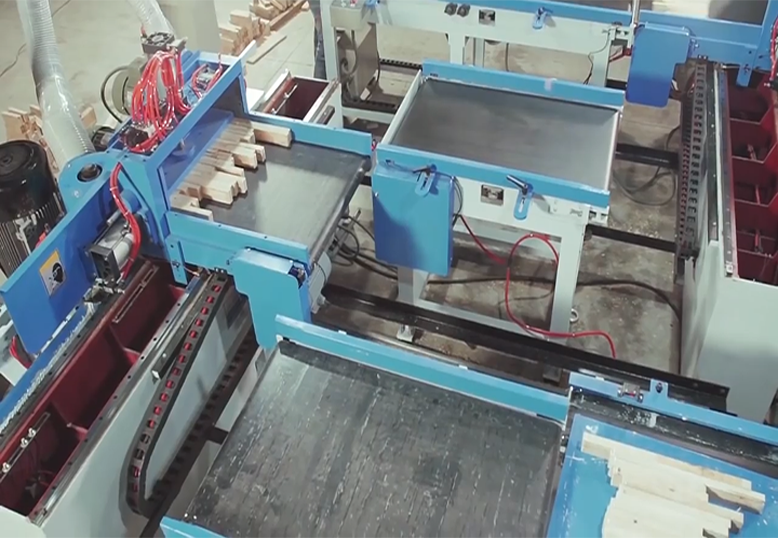

High speed finger joint system HKT-620)+84 28 73036536Free ordering and advice
product detail
Outstanding advantages:
● Automatic billet roller with 2 continuous presses, high productivity.
● Fully automatic wood winding, mortising, glueing and joining.
● Continuous billet feeding by conveyor system, mortising, gluing and mortising.
● Flexible adjustment of operating speed.
The line consists of 3 main parts:
● Finger cluster 1
● Finger cluster 2
● Vertical draw frame HKT-620
Application: Suitable for joining mortise and vertical mortise with the following advantages:
1. Ensure the adhesion of the wood billet
2 finger assemblies in turn work at the 2 ends of the wood billet, including the mortise brake and the glue roller. At the glue application cluster, the specialized glue roller box has a comb tooth design to help apply glue to each wood workpiece, while avoiding dirt on the glue and saving glue.
2. Increase factory productivity many times
With automatic billet roller with 2 continuous presses, the average joining speed is 90m/min for a 5-meter-long wooden bar. At the same time, each stage of tenon milling, glue rolling, finger wood joining are all operated at the same time, with flexible and fully automatic speed control, which brings high productivity.
Compared with the hydraulic jointing method, the HKT-620 glue roller vertical jointing line improves productivity by 30%.
3. Simple to use, save labor
Controlling the HKT-620 finger vertical chain will be extremely simple thanks to the touch screen display system showing 2 languages Vietnamese and English.
In addition, by applying fully automatic technology, the HKT-620 finger vertical jointing line only needs a maximum of 2 workers, helping to optimize costs for businesses.
PRODUCT PARAMETER:
Timber working length: | L = 150mm - 800mm |
Timber working width: | W = 30mm - 120mm |
Timber working thickness | T = 18mm - 70mm |
Average timber cross section: | W * T = 50 * 25 mm |
Timber out-feed length: | L = 3000mm - 5000mm |
Average out-feed length: | L = 5000mm |
Finger Profile (pitch & length): | P = 4.0mm, L= 11.5 -12.5mm |
Timber species: Softwood / Hardwood | |
Timber moisture: | 8 - 12 % |
Timber processed qualities require: Planed on four sides ±0.3mm | |
Timber processed qualities require: | KV35 |
Operating voltage: | 380V, 50HZ |
PARTS SPECIFICATIONS:
1. Twin feeding conveyor device HKT - 620 | |
Size: | W=630mm . L=900mm x 2 |
Speed: | 60 m/min |
Power: | 1/2HP * 2pcs |
Machine net weight: | 246 kg |
2. Single feeding conveyor device 1 HKT - 620 | |
Size: | W=630mm . L=900mm |
Speed: | 60 m/min |
Power: | 1/2HP * 1pcs |
Machine net weight: | 147kg |
3.Single feeding conveyor device 2 HKT - 620 | |
Size: | W=630mm . L=900mm |
Speed: | 60 m/min |
Power: | 1/2HP * 1pcs |
Machine net weight: | 130kg |
4. Finger shaper 2 HKT - 620 | |
Working dimension: | W=30mm - 620mm . L=150mm - 800mm. H=18mm - 120mm |
Motor of finger spindle: | 15HP * 1pcs |
Size of finger cutter: | ID50mm x OD160mm x 4mm x 2T |
Finger spindle RPM: | 5700 rpm/min |
Motor of main cutting spindle: | 5HP * 1pcs |
Size of main cutting blade: | Ø255mm x 80T x 3mm * 1pcs |
Speed of main cutting blade: | 2800 rpm/min |
Lower cutting motor: | 1HP * 1pcs |
Size of lower cutting blade: | Ø180mm x 60T x 3mm * 1pcs |
Speed of lower cutting blade: | 2800 rpm/min |
Motor of conveyor: | 1/2HP * 1pcs |
Table feeding motor: | 1HP * 1pcs |
Speed of finger jointing table: | 38.5 m/min |
Cycle speed packing/min: | 3 - 4 times/min |
Machine demensions: | L=2200mm. W= 1550mm. H=1435mm |
Machine net weight: | 1305kg |
5. Finger shaper 2 HKT - 620 | |
Working dimension: |
W=30mm - 620mm . L=150mm - 800mm. H=18mm - 120mm |
Motor of finger spindle: | 15HP * 1pcs |
Size of finger cutter: | ID50mm x OD160mm x 4mm x 2T |
Finger spindle RPM: | 5700 rpm/min |
Motor of main cutting spindle: | 5HP * 1pcs |
Size of main cutting blade: | Ø255mm x 80T x 3mm * 1pcs |
Speed of main cutting blade: | 2800 rpm/min |
Upper cutting motor: | 1HP * 1pcs |
Size of upper cutting blade: | Ø180mm x 60T x 3mm * 1pcs |
Speed of upper cutting blade: | 2800rpm/min |
Lower cutting motor: | 1HP * 1pcs |
Size of lower cutting blade: | Ø180mm x 60T x 3mm * 1pcs |
Speed of lower cutting blade: | 2800 rpm/min |
Motor of conveyor: | 1/2HP * 1pcs |
Table feeding motor: | 1HP * 1pcs |
Speed of finger jointing table: | 38.5 m/min |
Cycle speed packing/min: | 3 - 4 times/min |
Machine demensions: | L=2360mm. W= 1550mm. H=1435mm |
Machine net weight: | 1350kg |
6. Auto finger assembler HKT - 620 | |
Working dimension: | W=30mm - 120mm . L=150mm - 5000mm. H=18mm - 70mm |
Lower motor for feeding workpieces: | 2HP * 1psc |
Upper motor for feeding workpieces: | 2HP * 1psc |
In-feed Inverter: | 3.7 kw * 1pcs |
Speed of longitudinal jointing conveyor | 90 m/min |
Motor of main cutting spindle: | 5HP * 1pcs |
Diameter of main cutting blade: | Ø355mm x 120T x 25.4mm * 1pcs |
Rotating speed of the cutting spindle: | 2800 rpm/min |
Hydraulic motor: | 5HP * 1pcs |
Working pressure of hydraulic cylinder: | 20 - 40 kgf/cm2 |
Working pressure of pneumatic cylinder: |
5.5 – 6 kgf/cm2 |
Capacity /min | 4 - 5 pcs/min |
Machine demensions: | L= 7600mm. W= 1970mm. H= 1850mm |
Machine net weight: | 2944kg |
