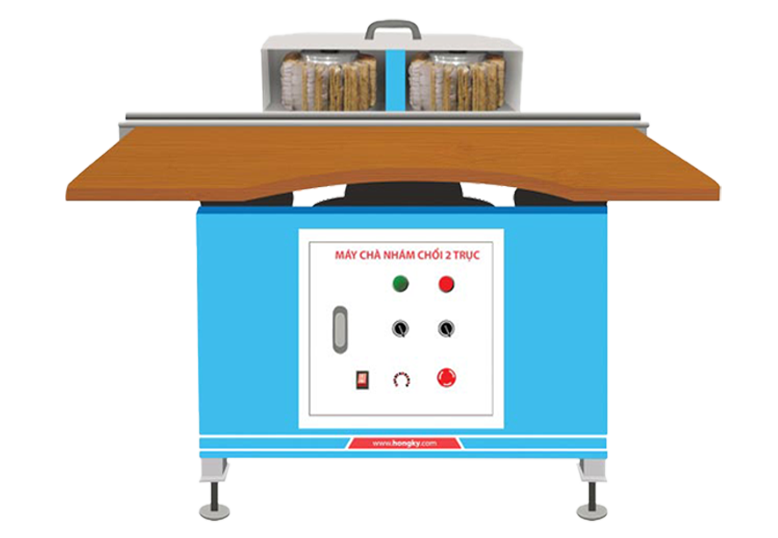

V2 brush edge sander

V2 brush edge sander+84 28 73036536Free ordering and advice

product detail

Feature :

Used for sanding or polishing the edge of the table surface, the edge of the seat, the edge of the bar door, the edge has a concave convex profile, the edge of the corner of the edge, the edge of the edge, the concave curved edge has R> 500mm (...)
The machine has two coarse and fine roughers to give a smoother surface
Sanding and broom replacement are easy and quick
Suitable for discharging paint and scrubbing wood surfaces
Customize the roughness speed by inverter
Customize the height of the anilox roll and the axial degree by gently lifting motor.
Quickly adjust the machine when changing product specifications

PRODUCT PARAMETER


Timber species: Softwood / Hardwood
Specification	Giá trị / Value
Operating voltage:	1 phase-220V ± 5%/50Hz
Working thickness:	5-80 mm
Table dimensions (WxL):	500x1200 mm
Working table height:	800-980 mm
Sanding spindle speed:	200-500 vòng/phút / rpm

Main motor:	2 x 0.37kW-4P
Lifting speed:	5 mm/giây / mm/s
Hoisting motor:	0.1 kW
Tilt angle:	0–45o
Công suất motor nghiêng trục nhám	0.1 kW
Dust extraction hood:	'Ø90 mm
Air volume/Dust extraction:	690 m³/ h
Machine size (LxWxH):	1000x1200x1100 mm
Weight machine:	180 kg
Total power:	0.94 kW
