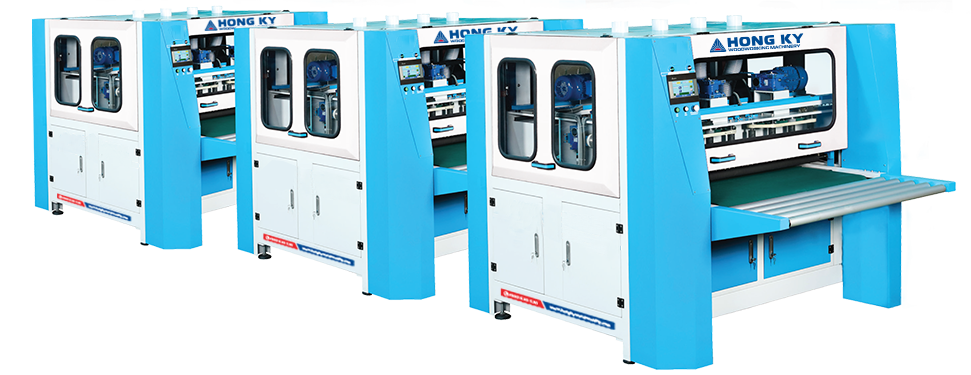

HK-FLEX 1300-UU-NN-DD SANDING MACHINE LINE LEFT (WIDE BELT)
The 1300 UU-NN-DD module sander is specialized for sanding wood before painting and scrubbing the primer from rough to fine. Suitable for scrubbing many profiles such as planes, convex surfaces, grooves, profiles, wooden doors of all kinds, ...

The product is designed according to European standards with 3 unique separate modules.

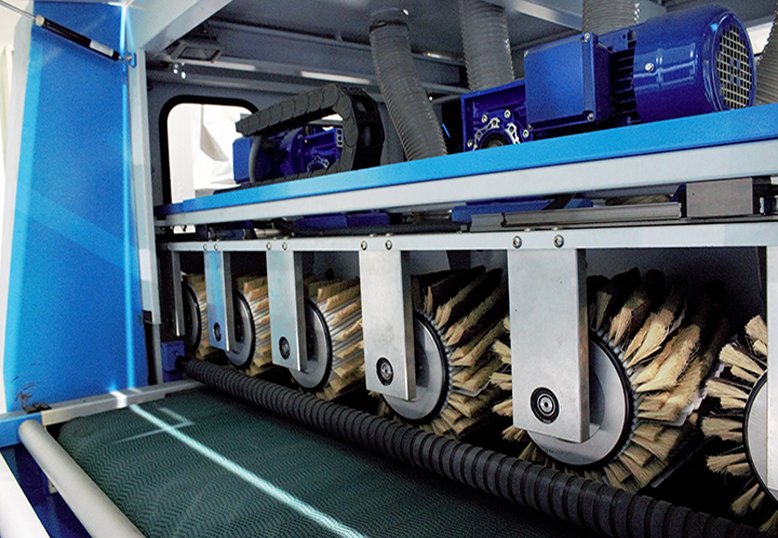

- UU module: With a structure of a horizontal spiral shaft, it helps to scrub wood hairs at convex and concave positions on the wood surface.

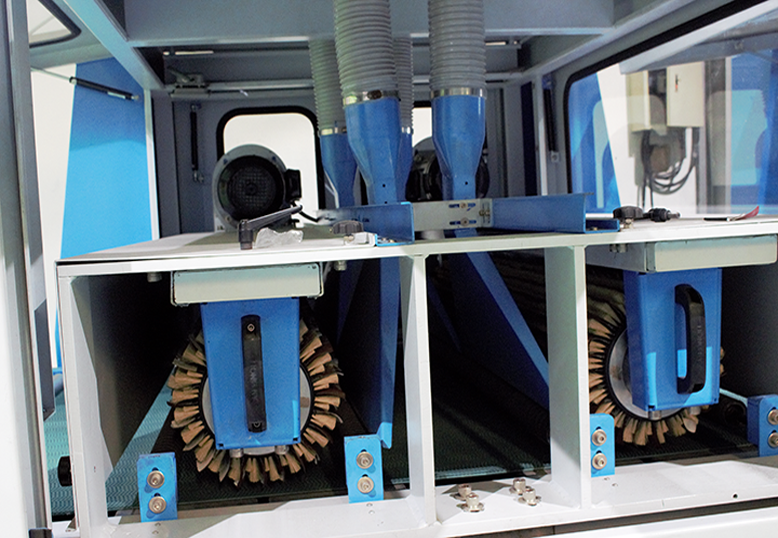

- NN module: Two straight axes running in opposite directions for perfect scrubbing of wood surfaces.

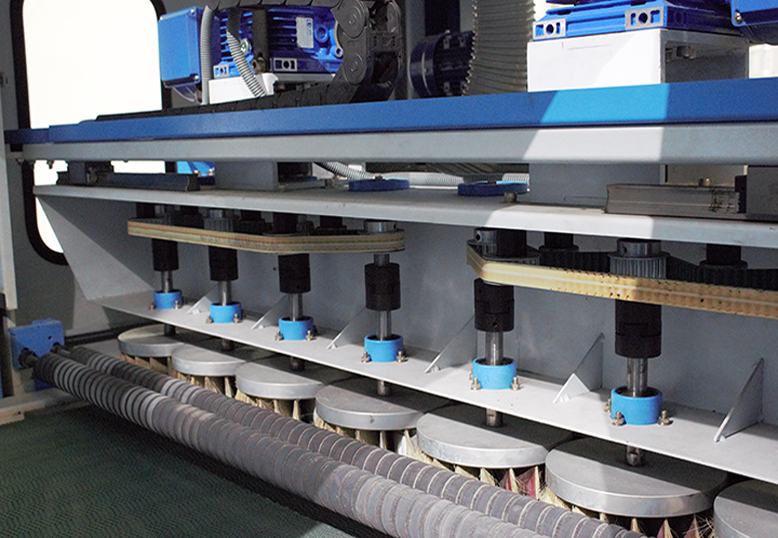

- DD module: Through 16 axes of multi-directional rotating discs, it helps to erase all stripes, scratches, and at the same time remove all the remaining wood hair.

With a separate modular design, it is easy for users to manipulate and use effectively.

HIGHLIGHTS

- Rub evenly into slots, grooves, effectively reduce edge sharpness and smooth and shiny details before painting and after priming.

- Can customize the speed fast, slow suitable for each type of detail.

- Modules work independently, easy to change the scrubbing speed of each machine.

- With a large conveyor belt, the brush shaft is long, so the scrub table is up to 1300mm wide.

- Scrub a variety of details from fine scrubbing to priming with a wood length of 350mm or more. Can rub wood, the thinnest board is 5mm.

- Depending on the detail of the scrubber, the module positions can be changed together to create the most optimal effect.

- The control screen has 2 languages English and Vietnamese to make it easy for users to operate and use.

The 1300 UU-NN-DD modular sander is a combination of a horizontal helix, a straight shaft and a disc shaft for a multi-directional sander that guarantees a uniform, low-fault product. Not only that, thanks to special improvements in technology to help the line operate quickly and smoothly, contributing to saving time and costs, productivity is guaranteed to increase 4 times.

PRODUCT PARAMETER

HK-FLEX 1300-UU SANDING MACHINE LEFT (WIDE BELT):

ECHNICAL SPECIFICATIONS	Value	Model: HK-FLEX 1300-UU-L (SC)
ECHNICAL SPECIFICATIONS	Value	Code: 2190038
Operating voltage	-	3 phase-380V ± 5%/50Hz
Working thickness	mm	5-100
Minimum working length	mm	400
Maximum working width	mm	1300
Lifting motor - High adjustment	mm	5-120
Conveyor speed	m/min	2-15
Working height	mm	850-900
Rotating speed of sanding spindle	rpm	100-300
Cross movement	m/min	1-10
Dust extraction hood	mm	4 x Ø100
Air volume/Dust extraction	m³/ h	3400
Size of machine (LxWxH)	mm	2380x2330x1780
Machine net weight	kg	1600
Total power	KW	6.7

HK-FLEX 1300-NN SANDING MACHINE LEFT (WIDE BELT):

ECHNICAL SPECIFICATIONS	Value	Model: HK-FLEX 1300-NN-L (SC)
ECHNICAL SPECIFICATIONS	Value	Code: 2190037
Operating voltage	-	3 phase-380V ± 5%/50Hz
Working thickness	mm	5-100
Minimum working length	mm	400
Maximum working width	mm	1300
Lifting motor - High adjustment	mm	5-120
Conveyor speed	m/min	2-15
Working height	mm	850-900
Rotating speed of sanding spindle	rpm	150-500
Cross movement	m/min	-
Dust extraction hood	mm	4 x Ø100
Air volume/Dust extraction	m³/ h	3400
Size of machine (LxWxH)	mm	2380x2330x1855
Machine net weight	kg	1450
Total power	KW	3.81

HK-FLEX 1300-DD SANDING MACHINE LEFT (WIDE BELT):

ECHNICAL SPECIFICATIONS	Value	Model: HK-FLEX 1300-DD-L (SC)
ECHNICAL SPECIFICATIONS	Value	Code: 2190036
Operating voltage	-	3 phase-380V ± 5%/50Hz
Working thickness	mm	5-100
Minimum working length	mm	400
Maximum working width	mm	1300
Lifting motor - High adjustment	mm	5-120
Conveyor speed	m/min	2-15
Working height	mm	850-900
Rotating speed of sanding spindle	rpm	200-560
Cross movement	m/min	1-10
Dust extraction hood	mm	4 x Ø100
Air volume/Dust extraction	m³/ h	3400
Size of machine (LxWxH)	mm	2380x2330x1780
Machine net weight	kg	1550
Total power	KW	6.7
